MKC65 Pre-order

Pre-order Time

From January 15th to February 15th

Estimated Delivery

The delivery is expected to be around two months after the pre-order ends. Due to the influence of the Spring Festival holiday and potential adjustments in the order quantity, there might be a slight variation in the delivery time.

First Week Pre-order Bonus

A MKC Titanium Switch Puller

MKC65 INTRODUCTION

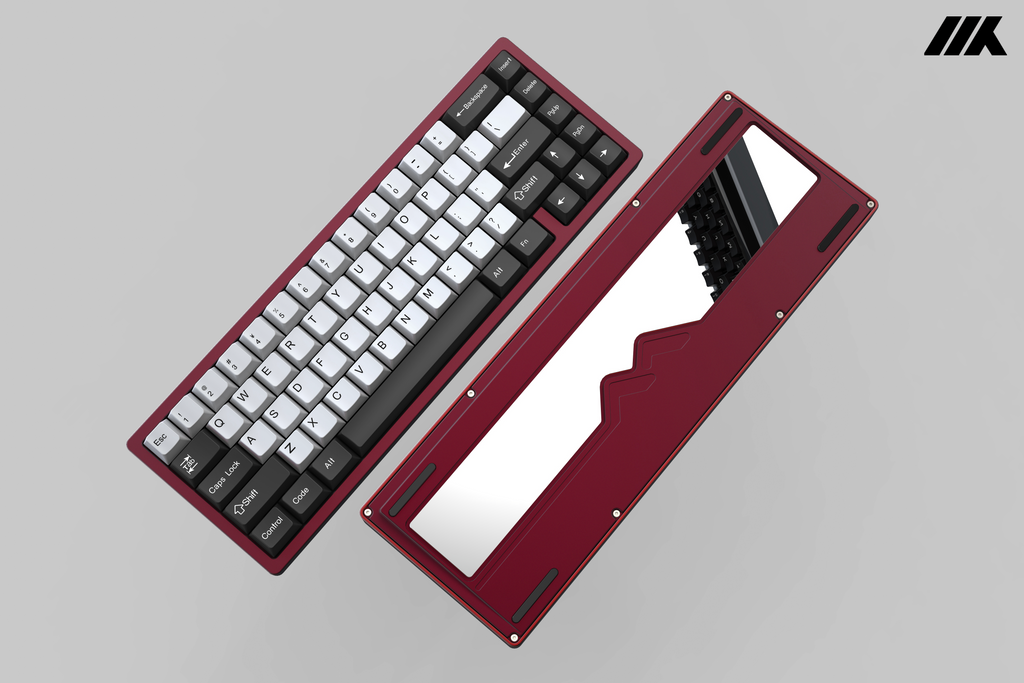

MKC65 is the second keyboard in the MKC series. Similar to the MKC75, the MKC65 shares comparable features and characteristics. The design inspiration for the MKC65 keyboard comes from the initial letter 'M' in MKC, forming a distinctive and layered M-shaped pattern.

MKC series is planned to do some more budget keyboards. We aim to make it affordable and accessible for most customers, enabling truly entry custom keyboards comparable to mass-produced, which can be easily purchased. Therefore, The product positioning of the MKC series is an entry-level customization kit for mass production.

Three-in-one Structure

Three-in-one structure (Top Mount, Plate Gasket Mount, and PCB Gasket Mount) is a versatile keyboard mounting system that combines the distinctive features of these three structures for comprehensive performance. Users can customize based on personal preferences and usage scenarios.

TOP Mount
PCB Gasket Mount
Plate Gasket Mount

Support Rotary Knob & Light Sign

The four keys located on the rightmost row of the MKC65 keyboard (Insert, Delete, PgUp, and PgDn keys) can function as a customizable module. The Rotary Knob and Light Sign can be interchanged among any four keys, and they don't necessarily need to be connected together.

However, please note that it supports a maximum of two functional modules simultaneously. For example, 2 * Rotary Knob, 2 * Light Sign, or 1 * Rotary Knob + 1 * Light Sign.

Note: The Rotary Knob and Light Sign have a separate daughterboard. And please note that the wired and wireless versions of the knob are not compatible.

Specifications

Compact 65% layout
Typing angle: 6.5°
Front height: 19 mm
Material: Full CNC 6063 aluminum

Alu Internal Weight
Dimension: 319.85*110.3*29.95mm
Three-in-one Structure: TOP Mount / Plate Gasket Mount / PCB Gasket Mount
QMK/VIA Supported（wired）
Support PCB stabilizers

WHAT YOU CAN CUSTOMIZE FOR MKC65?

Case Options

4 E-coat case：E-white, Milky White, Pink, Mint Green
4 Anodized Case: Wine Red, Black, Grey, Silver

Weight Options

4 Alu Weight: Gold/ Silver/ Rose Gold/ Black
4 PVD Mirror SS Weight: Gold/ Silver/ Black/ Chroma

PCB Options

Wired Non-Flex Cut Solder PCB (1.6mm, Multi Layout, 7u split spacebar, No Per-key RGB, support QMK and VIA )
Wired Non-Flex Cut Hotswap PCB(1.6mm, Multi Layout, 7u split spacebar, No Per-key RGB, support QMK and VIA )
Wired Flex Cut Hotswap PCB( 1.2mm, Multi Layout , 7u split spacebar, No Per-key RGB, support QMK and VIA )

Wired Per-Key RGB Hotswap PCB ( Add-on only, 1.6mm, Non-Flex Cut, ANSI Layout, support QMK and VIA )
Tri-mode Hotswap PCB (1.2mm, Non-Flex Cut, No Per-key RGB, ANSI Layout, support Mykeyclub Software）
